Taylor-Dunn ETRAM Utility EV CLASS: People Mover 0-60mph: n/a Top Speed: n/a Engine: 48 volt 2400 rpm Range: 30 Miles Cost/mi: n/a Tow Capacity: 15,000 lbs PRICE: n/a TD

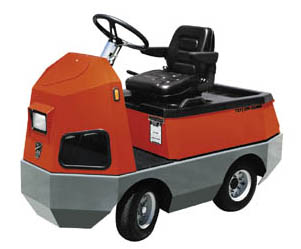

Taylor-Dunn "Husky" Electric Utility Vehicle The Huskey Electric Tow Tractor was designed to provide reliable service in rugged applications. The four wheel design of this vehicle ensures maximum safety without compromising any maneuverability. Huskey utilizes a 48 volt electrical system equipped with a self-diagnostic 550 amp Mosfet controller, and a drive train incorporating a 13 hp DC series wound motor attached to a 30:1 auto-motive differential to provide rugged and reliable service for years to come. Ergonomics and operator safety are other key design features. Tilt steering wheel, spring-loaded adjustable operator seat, and improved visibility while maneuvering in tight spots make Huskey one of the most modern tow tractors manufactured. Equipped with standard lift out battery box or optional left side extract (LSX) battery system, Huskey can be utilized 24 hours a day. With a smooth ride and effortless operation, provided by front and rear suspension, Huskey is the operator's choice. Other standard equipment including headlight, turn signals, hazard lights, and reverse lights, make Huskey one of the best narrow aisle tow tractor values in the industry.   Product Line: Model C4-25 Wheels: 4 wheels Unit Weight: 1650 lbs. (less battery) Towing Capacity: 15,000 lbs. Draw Bar Pull: 300 lbs. (normal); 2,000 lbs. (ultimate) Battery Compartment Size: 32"w x 16.5"l x 24"h Battery Weight Range: Minimum 1,000 lbs., maximum 1,400 lbs. System Voltage: 48 volts (optional 24 or 36 volt) Travel Distance (Unloaded): 30 miles Energy Consumption: 315 watt/hr. per mile Drive Axle: Automotive type differential and housing Transmission: Power traction, 30:1 reduction Motor h.p. 48V @ 2,400 rpm: DC series wound 13 hp Speed (Unloaded): 9 mph Gradeability: 15% empty, 5% fully loaded Tires Pneumatic: 4.80 x 8 load range "C" pneumatic tires, split rims Brakes: Hydraulic disc brakes front & rear, hand operated parking brake Steering: Automotive steering 24:1, tilt steering column Frame: 3/16 inch thick steel chassis Bumper: Heavy duty steel front bumper Suspension: Coil springs front and rear, with shock absorbers Color: Two tone red cowl and battery lid, grey chassis Seats: Adjustable seat single passenger, spring loaded Controller: Solid state self diagnostic 48 volt/550 amp, hi-low speed Wiring: Modular harness design with weather protected connectors, fuse box Instrumentation: DC-DC converter, seat interlock switch, battery status indicator, hour meter, electrical disconnect switch Light Accessories: Headlight, taillights, brake lights, reverse lights, turn signals Conformance Standards: Type E OSHA requirements 1910.178, ANSI B56.9-1987 requirements     Look for more information stay tuned to ElectricCars.com! Click this logo to go to the Taylor-Dunn website...
